Model 4
Model 48
Model 22
Automatic (Automatic Dewar Filling System)
Automatic Dewar Filling ADF10 for unattended liquid nitrogen filling. This system is designed to automatically fill a dewar/mobile tank with liquid nitrogen from a piping system or bulk tank. Automatic shut off for unattended filling Fastest filling rate compared to any products in the market Equipped with a user defined safety timeout feature Provides a […]
Manual (Dewar Changeover System)
Dewar changeover systems provide a continuous, uninterrupted flow of liquid nitrogen to the use point. When the primary source is empty, the system allows a simple switchover to a standby, full, secondary supply bank, thus eliminating liquid supply interruption. CSM Cryogenic provides two options for dewar switchover system: Manual or Automatic Automatic switchover stations will […]
Vent Heater
CSM Vent Heater is installed at the outlet of a liquid nitrogen vapor venting piping to prevent the formation of frost or ice balls, thereby minimizing safety hazards such as falling ice and water drips. The vent heater is available in various design options.

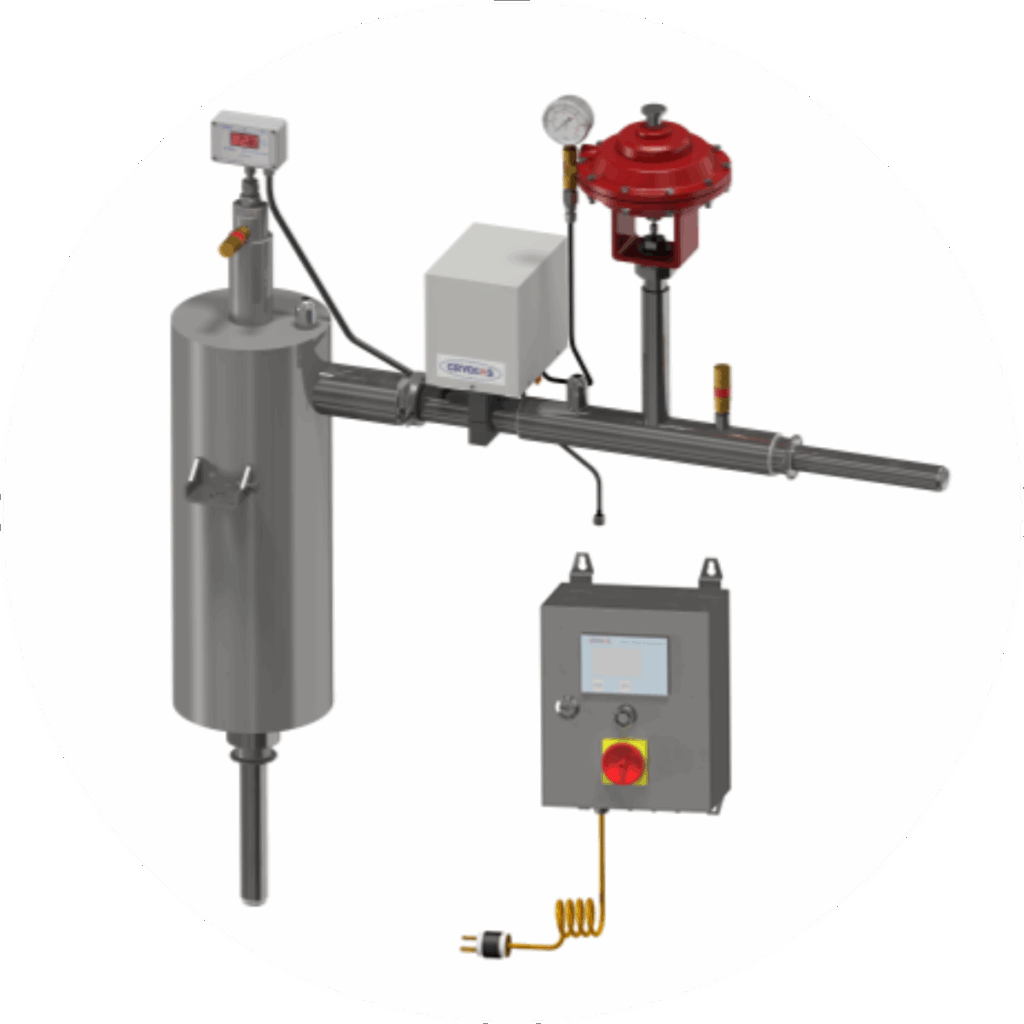

Electronic (CryoVent)
The Electronic Cryovent is installed to enhance the liquid delivery performance of a piping system. Under normal operational circumstances, the liquid in the system is constantly vaporizing into gaseous nitrogen due to a constant heat leak. If the accumulated gas in the pipeline is not removed, it will block the liquid flow to the use […]
Mechanical (CryoVent)
The CryoVent is a cryogenic gas removal device designed to remove excess vapor and prevent accumulation in cryogenic piping systems when the liquid is in static condition (zero flow). It ensures that the cryogenic system is always filled with liquid. The CryoVent is typically placed at the highest point of a cryogenic infrastructure. Under normal […]
Point-of-Use
Due to a constant heat leak and pressure drop between the storage tank and the consumer use points, a portion of the liquid nitrogen in the pipeline will evaporate into gas or vapor. As the liquid passes through the degasser, the gas is removed, ensuring high-quality liquid is delivered to the use points. This is […]
Pipeline
The degasser removes gas by slowing down the liquid flow velocity, ensuring that the exit liquid supply is pure. It is typically installed either in-line or at the end of the pipeline before connecting to equipment. Due to a constant heat leak and pressure drop between the storage tank and the consumption use points, a […]
Adjustable Pressure
Pressure adjustable Phase Separator is used for stepping down the pressure of liquid nitrogen in the pipe line. This is done by venting out excessive vapor while maintaining a constant liquid supply capacity for downstream consumption. The result is a high quality, low pressure liquid nitrogen with precise temperature control at the user’s point of […]
Atmospheric Pressure
Stainless-steel vacuum jacketed cryogenic conditioning system is designed to control LNâ‚‚ pressure at the user’s required setting. Once the system has been set up, liquid level and pressure are automatically controlled by the controller. The controller comes with an HMI that allows the user to set their required pressure and level. The primary function of […]
